• Frame29″, Carbon, Integrated battery, Boost, 150 mm
• ForkRockShox Revelation RC, DebonAir, Air, 150 mm, tapered
• ShockRockShox Deluxe Select, Air, 230×65 mm

Brakes & Drivetrain

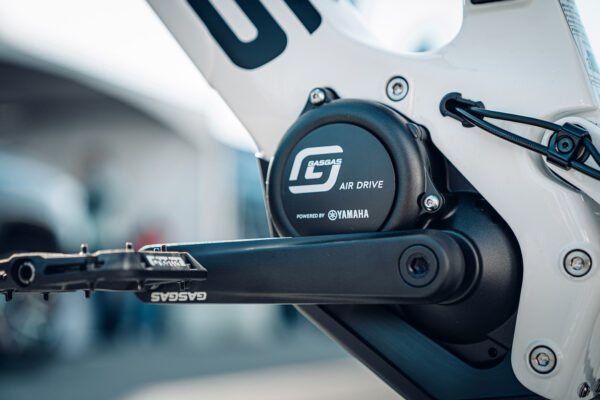

• MotorAIR DRIVE powered by Yamaha, 250 W, 50 Nm
• BatteryYamaha ML500, 500 Wh, 36 V
• ChargerYamaha rapid charger, 4 A
• Mode SwitchYamaha X
• DisplayYamaha Interface X, LED-Display, ANT, Bluetooth
• Front brakeFormula Cura 4, 4-piston, Hydraulic disc brake
• Front brake rotorFormula, 203 mm, 6-hole
• Rear brakeFormula Cura, 2-piston, Hydraulic disc brake
• Rear brake rotorFormula, 180 mm, 6-hole
• Brake leverFormula Cura X, Brake lever, adjustable, 2-finger
• Rear derailleurSRAM NX Eagle, 12-S
• CassetteSRAM PG-1210, 10-50 T
• ChainSRAM SX Eagle
• ChainringSRAM X-Sync Eagle, 34 T
• Crank armGASGAS EC33, Aluminum forged, JIS
• Shift leverSRAM SX Eagle, Single Click

Wheels

• WheelsetNEWMEN Evolution A.30, Tubeless ready, 6-hole, 15×110/12×148 mm, thru axle
• TireContinental Mountain King, 29, 2.3, Tubeless ready

Cockpit

• StemRace Face Affect 35, 0 °, Ahead
• HeadsetGASGAS ZS44/ZS56
• HandlebarRace Face Turbine 35 mm, 780 mm, Sweep: 8 °, Rise: 20 mm
• GripsGASGAS MTB
• SaddleSelle Italia SLR Boost, Titan
• Seat postGASGAS Pro, 31.6 mm, Dropper post

Accessories

• Chain guideDirect Mount

Additional Information

• Weight 20.4 kg
